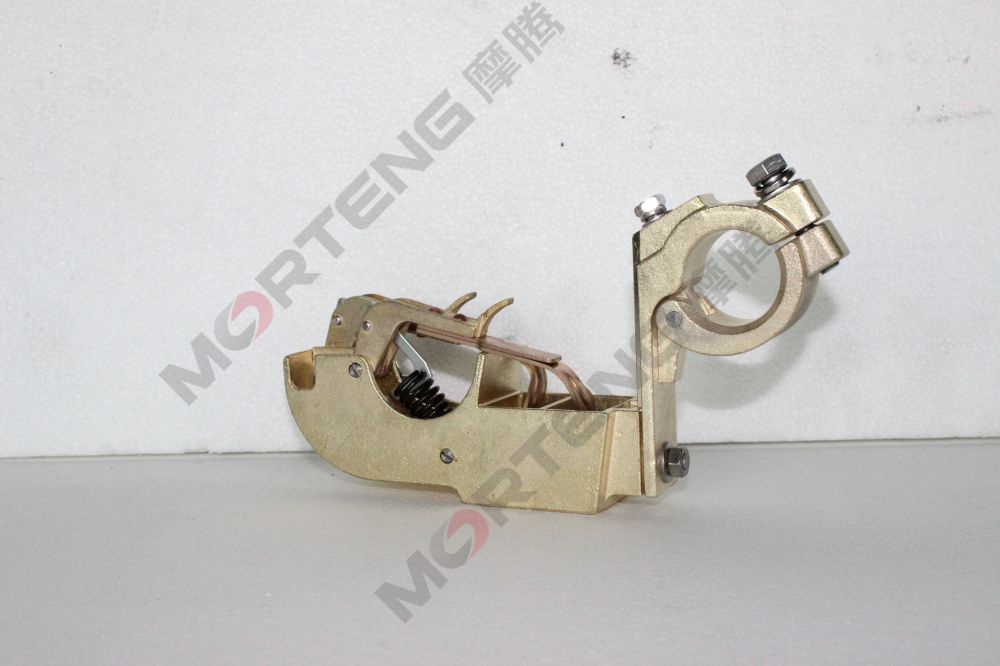

Carbon Brush Holder Assembly for Slip Ring Use

Short Description:

Material: Copper / stainless steel

Manufacturer: Morteng

Dimension: 20 X 32

Part Number: MTS200320X016

Place of Origin: China

Application: Brush Holder for General Industry


Product Detail

Product Tags

Product Description

1.Convenient installation and reliable structure.

2.Cast silicon brass material, reliable performance.

3.Using spring fixed carbon brush, the form is simple.

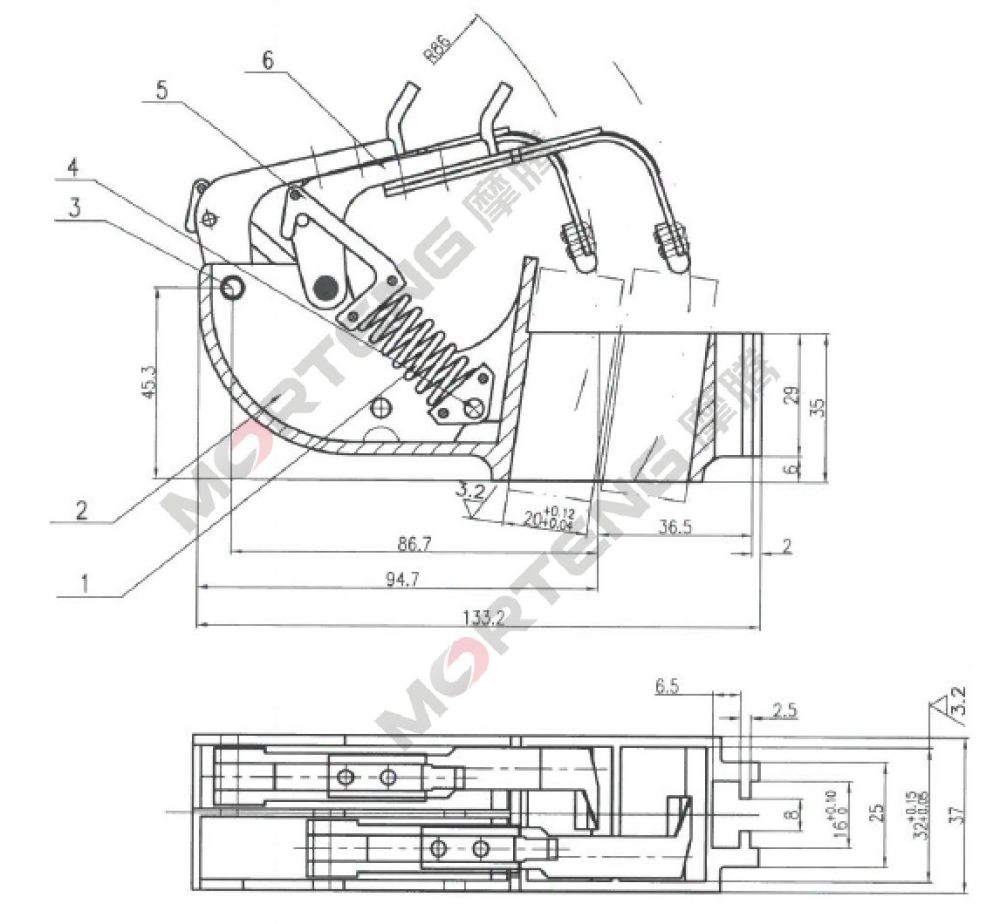

Technical Specification Parameters

Non-standard Customization is Optional

Materials and dimensions can be customized, and the normal brush holders’ opening period is 45 days, which takes a total of two months to process and deliver the finished product.

The specific dimensions, functions, channels and related parameters of the product shall be subject to the drawings signed and sealed by both parties. If the above mentioned parameters are changed without prior notice, the Company reserves the right of final interpretation.

Main advantages

Rich brush holder manufacturing and application experience

Advanced research and development and design capabilities

Expert team of technical and application support, adapt to various complicated working environment, customized according to customer's specific requirements

Better and overall solution

Selection of brush holders

A carbon brush behaves differently in different application environments. In particular, the temperature and humidity have a significant impact. It is equally important to collect and record climatic data such as operating conditions and also parameters such as power current, speed, voltage drop and mechanical losses, which are important when selecting carbon brush grades. Morteng also has access to many climatic chambers where we collect the data and control the ambient environments. We have the possibility to simulate everything from extremely arid climates up from -20% to 100% RH (Relative Humidity) at various temperatures.

Here are some pictures of our lab.

Looking forward to receive your reply sooner or later.
