Main Carbon Brush for Wind Power Generator
Detailed Description
|
Drawing No |
Grade |
A |
B |
C |
D |
E |
|
MDFD-C200400-136-41 |
136-42 |
40 |
20 |
100 |
R175 |
8.5 |

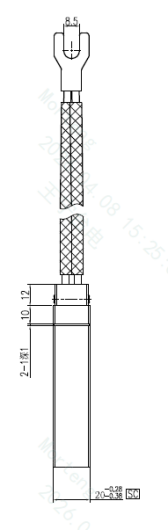

Non-standard customization option
Material and size structure can be customized, the normal carbon brush processing finished products and delivery cycle within one week.
The specific size, function, channel and related parameters of the product shall be subject to the drawings signed and sealed by both parties. The above shall be subject to change without prior notice, and the final interpretation shall be reserved by the Company.
The Advantages of Morteng's 136-41 Carbon Brush
About Morteng
Morteng’s 136-41 carbon brush has become a high-quality choice in wind power sector, offering a range of outstanding advantages and designed specifically to meet industrial requirements.
The key advantages of this carbon brush lie in its extremely low current-carrying losses and dual insulation safety. Through an optimal copper-to-graphite ratio and precision machining techniques, the contact resistance is less than 0.004 Ω, significantly reducing energy loss whilst ensuring stable current transmission. The brush’s excellent wear resistance minimises wear during long-term operation, not only substantially extending its service life but also effectively protecting the slip ring from damage. The dual-grounding insulation design completely eliminates false leakage current alarms caused by carbon powder accumulation. Combined with a shock-resistant structure filled with high-temperature-resistant adhesive, it is particularly suitable for harsh environments such as offshore high-power wind turbines, where high-frequency vibrations and strict
maintenance-free requirements are prevalent.
Backed by Morteng's strict quality assurance system and relevant certifications, the 136-41 ensures long-term, low-maintenance operation.
Morteng is the leading brushes manufacture for brushes. We provide customers cost-effective, high-quality products with short lead times. We can manufacture products to meet our customers’ requirements. What’s more, we select and utilise the most appropriate mode of transport in accordance with the principles of ‘safety, speed, accuracy, cost-effectiveness and convenience’.
