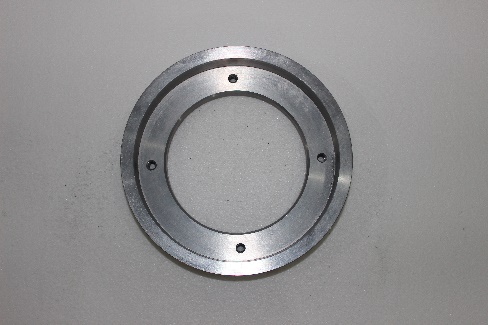

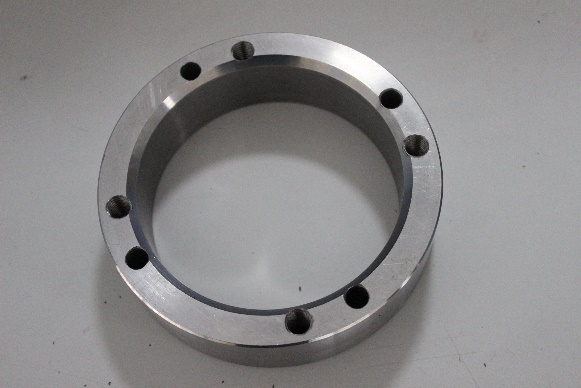

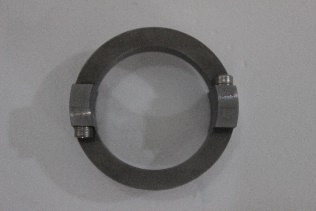

MTE12401092 Grounding Ring

The Morteng grounding ring plays an indispensable role in preventing the formation and accumulation of shaft voltage and bearing currents—two common yet destructive issues in rotating electrical machinery like motors and generators. Shaft voltage typically originates from electromagnetic induction effects within the machine, such as uneven magnetic flux distribution in the stator core, capacitive coupling between the stator windings and the rotor, or residual voltages from variable frequency drives (VFDs) that power many modern industrial motors. When this voltage builds up across the shaft, it can exceed the dielectric strength of the lubricating film in the machine’s bearings. Once this threshold is crossed, a discharge occurs, creating what is known as a bearing current. These currents, though often small in magnitude, are highly concentrated, and over time, they erode the bearing raceways and rolling elements, leading to pitting, spalling, and premature bearing failure. In severe cases, this can result in unexpected machine downtime, costly repairs, and even secondary damage to connected equipment in the production line.

Additionally, the grounding ring contributes to the overall electromagnetic compatibility (EMC) of electrical systems by reducing the emission of stray electromagnetic fields that can interfere with nearby sensitive equipment. By diverting leakage currents and preventing uncontrolled current flows, the grounding ring helps maintain a stable electrical environment, minimizing the risk of electromagnetic interference (EMI) that could disrupt the performance of communication systems, control panels, or other precision electronics. In compliance with industry safety standards and regulations, the inclusion of a properly sized and installed grounding ring is often a mandatory requirement to ensure the safe operation of electrical equipment, protect personnel from electrical shock, and prevent damage to valuable assets.
