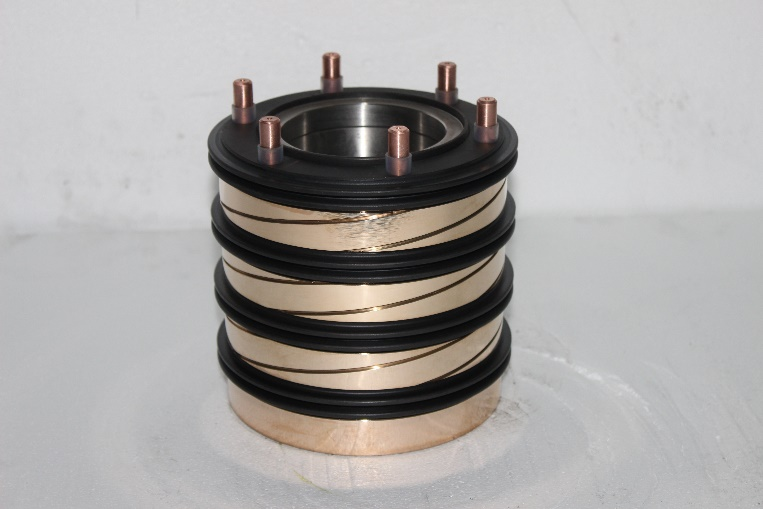

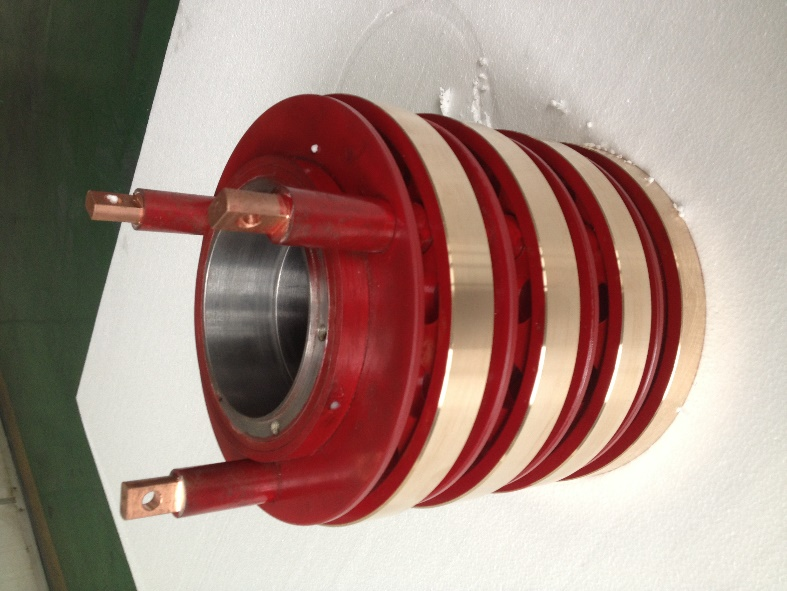

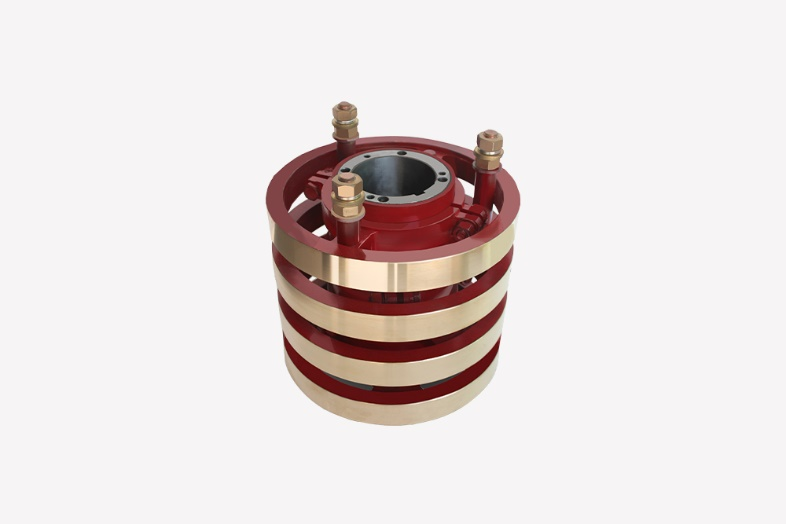

A gearbox slip ring (also known as a rotating electrical interface or conductive slip ring) is a key electromechanical component in a transmission system. Its core function is to achieve stable power, signal, or fluid transmission between rotating and stationary components, ensuring reliable operation of the gearbox under dynamic conditions. The following is an explanation of Morteng's gearbox slip rings from the perspectives of technical principles, application scenarios, design types, and development trends:
1.Technical Principles and Core Functions
Morteng slip rings consist of a stator (fixed end) and a rotor (rotating end), which transmit energy or data through sliding contact between brushes (carbon brushes or metal alloy brushes) and conductive rings. They can be classified according to the transmission medium as follows:
-Electrical slip ring
-Fluid slip ring
-Fibre optic slip ring
In the transmission test rig, sensor data such as speed, temperature, and pressure are transmitted in real time to the control system.
2.Technical Challenges and Directions for Innovation
Current technical challenges include service life and wear. Brush contact friction causes material loss, especially in high-speed operating conditions where frequent replacement is required (e.g., traditional copper brushes have a service life of approximately 100 million revolutions). Electromagnetic noise affects sensor data accuracy, requiring optimised shielding design. Fluid slip rings are prone to leakage in high-pressure oil circuits and rely on precision mating surfaces.
Morteng offers cutting-edge solutions such as material innovation, using gold-plated contacts or graphene composite materials to reduce contact resistance and extend service life (e.g., Shengtu's top-of-the-line graphite alloy brushes). Structural optimisation: using split slip rings to support quick assembly and disassembly, and intelligent integration: combining fibre optic and electrical slip rings in a hybrid module to synchronously transmit power and large amounts of data signals. And multi-contact redundancy: reducing signal phase jitter.
