Slip Ring for CT Machinery
Brief Description
Material: Stainless steel
Manufacture: Morteng
Place of Origin: China
1.Division of structural system
1. Power transmission system
2.Control signal transmission system
3.High-speed data transmission system

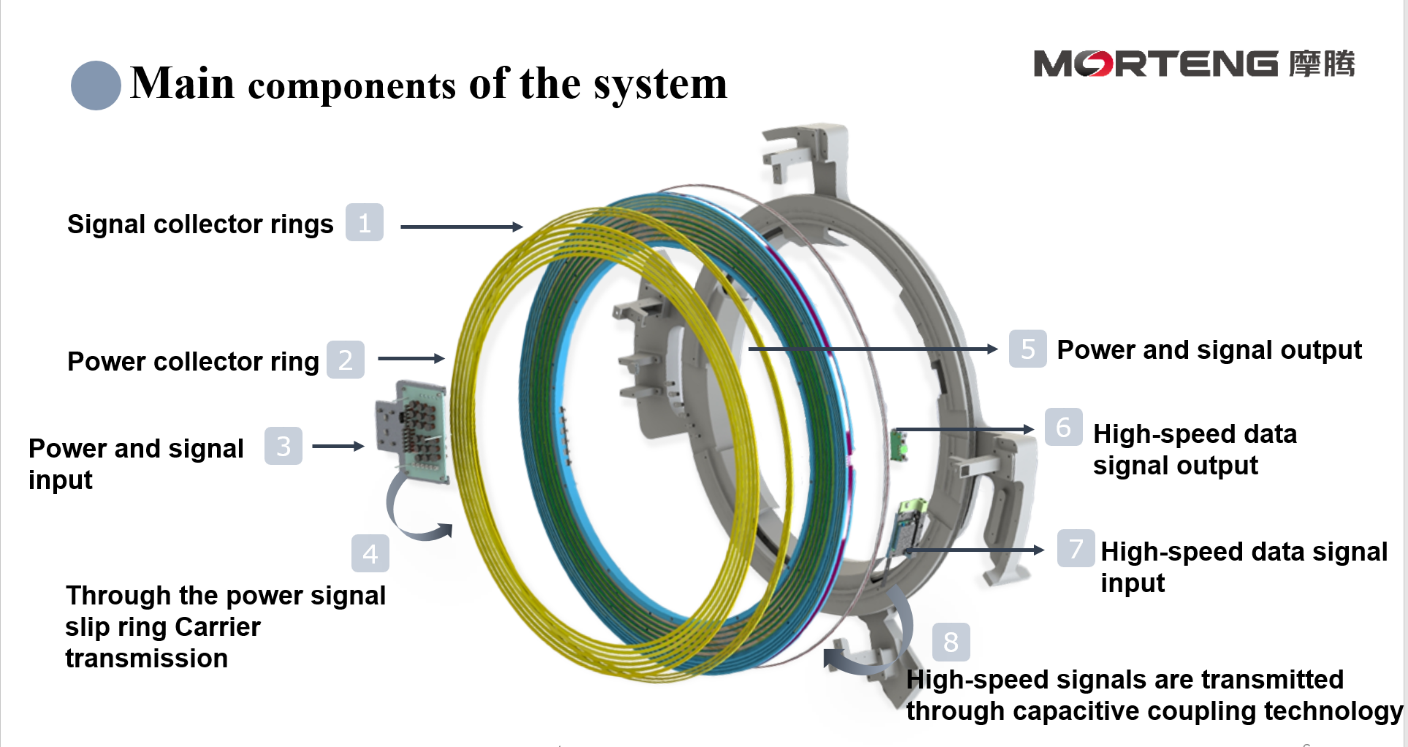

2.Main components of the system
3.Key technologies of the system

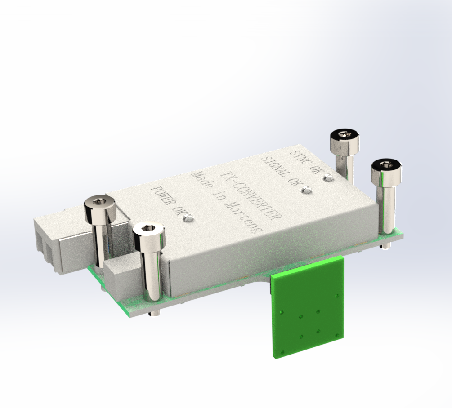

3.1 High-speed data transceiver module
3.2 Communication and power slip rings

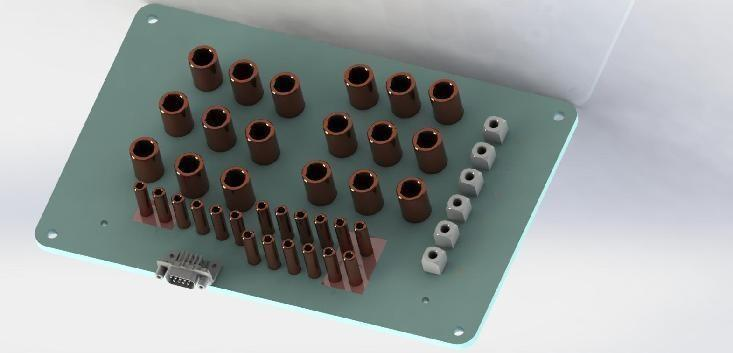

3.3 Communication and power carbon brushes
3.4 Slip ring insulated body
3.5 Signal transmitting antenna
For the high-speed data transmission scheme, a unique technical route is adopted to design a data transceiver module that can stably and reliably transmit high-speed data signals.
For the large-diameter copper rings in the slip ring system, copper alloys were selected through material analysis and formed based on the forging processing technology.
For the insulating seat of the large-diameter slip ring in the slip ring system, through material analysis and finite element simulation of various physical properties, insulating materials with higher comprehensive physical properties were studied, and a rapid prototyping process was proposed based on this material.
For the carbon brushes for signal and power transmission in the slip ring system, through the research on each element in the material and their ratios, and based on new processes and multiple performance tests, a new type of carbon brush has been formed.
4.Functions and characteristics of system components
4.1 Non-contact data transmission
4.2 It can transmit high-speed data signals up to 6.25Gbps at most
4.3 It has strong anti-electromagnetic interference ability
4.4 The bit error rate is 10-12 lower
4.5 High reliability
4.6 High compatibility
5.Communication and power slip rings
5.1 The power ring can transmit 380v voltage
5.2The signal ring CAN transmit CAN signals
5.3Material selection is carried out based on multiple experiments
5.4The material properties are strengthened by forging process
5.5 Good wear resistance
5.6 Stable performance
6.Communication and power brush system
6.1The power ring CAN transmit 380v voltage
6.2 Signals and the ring can transmit CAN signals
6.3 The carbon brush material elements are configured based on the process and multiple tests
6.4 Good wear resistance
6.5 Stable performance
