A slip ring is an electrical component designed to connect rotating bodies, enabling the transmission of power and signals. It primarily consists of two core parts: a rotating element (rotor) and a stationary element (stator). It mainly uses carbon brushes and copper rings as the contact body, and is mainly used to transmit large currents. However, carbon brushes have high power consumption and are prone to wear, resulting in a short overall service life.
Structural Components

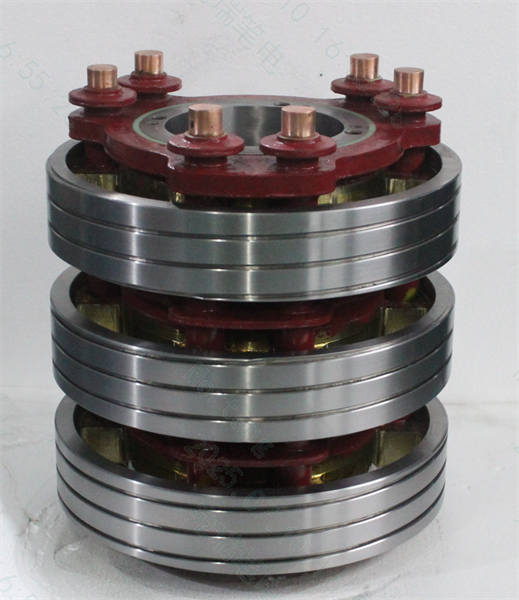

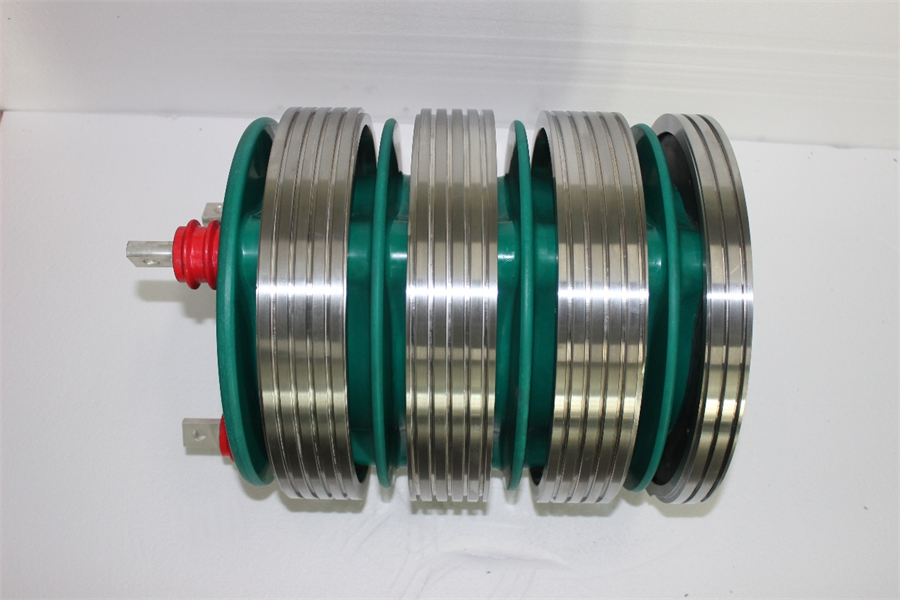

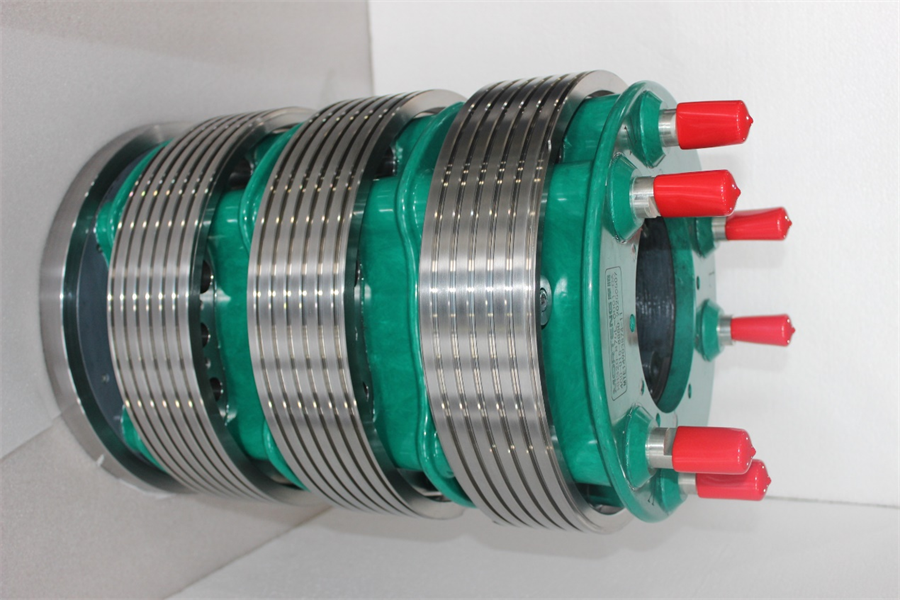

- Rotor: Typically comprises a series of conductive rings made from high-conductivity metallic materials (such as copper, silver, etc.), which rotate with the equipment.
- Stator: Houses brush assemblies, which employ materials such as carbon brushes or precious metal alloys. The brushes press against the conductive rings to maintain consistent electrical contact.
- Support and Sealing: Precision bearings ensure smooth rotor rotation with minimal friction, while seals and dust covers protect internal components from environmental contaminants.
Operating Principle
- Contact-Based Transmission: Brushes, under elastic pressure, maintain sliding contact with the conductive rings during rotation. This enables continuous transmission of electrical current or signals.
- Signal and Energy Transmission: Power and signals are reliably transferred through these sliding contact points. Multi-channel slip rings facilitate simultaneous transmission of multiple signal paths.
- Design Optimization: Material selection, contact pressure, lubrication, and thermal management are carefully balanced to minimize wear, reduce contact resistance, and prevent arcing.
Applications
Slip ring technology is indispensable in applications requiring 360° continuous rotation, such as wind turbines, industrial robotics, and medical imaging equipment. It provides critical electrical and signal connectivity for numerous advanced systems. Slip ring technology is widely applied in fields such as wind power generation, industrial robots, and medical imaging equipment, enabling electrical and signal transmission, making it an indispensable component for many high-tech devices.
