As core conductive components in wind turbines, carbon brushes play a crucial role in transmitting electrical power and signals between stationary and moving parts within the rotating system. In the generator's slip ring assembly, they act as the "electrical bridge" between the rotor and fixed circuits, while also providing continuous and stable electrical contact for the turbine's protection system. The stability of their performance directly impacts the safe and efficient operation of the wind turbine—any failure of carbon brushes may lead to chain issues such as power generation interruptions and component damage. Therefore, mastering scientific replacement timing and maintenance methods is of great importance.
1. Regular Replacement Cycles for Carbon Brushes
The service life of carbon brushes is not fixed; it must be comprehensively determined based on material characteristics and actual operating conditions. From a material classification perspective, copper-based carbon brushes, which offer strong conductivity but wear out relatively quickly, are generally recommended to be replaced every 1–2 years. Silver-based carbon brushes, with superior wear resistance and stability, can have their service life extended to 3–5 years. However, this cycle is only a basic reference, and the actual replacement frequency is influenced by multiple factors: differences in wind turbine models (e.g., varying loads between megawatt-class and small-scale turbines), design standards of generator manufacturers, operating environments (high temperatures, high humidity, and dusty areas accelerate wear), turbine utilization and duty cycle intensity, maintenance quality (including slip ring surface condition, brush holder alignment accuracy, and spring pressure stability), as well as the quality grade and material formula of the carbon brushes themselves. Thus, regular inspection is more effective in ensuring turbine safety than solely relying on fixed replacement cycles.
2. Key Warning Signs for Carbon Brush Replacement
(1) Visual Indicators
The physical condition of carbon brushes is the most direct basis for judgment. First, pay attention to changes in length: when a carbon brush wears down to the minimum limit size specified by the manufacturer, or it is expected to reach this threshold before the next scheduled maintenance, it must be replaced promptly. Second, check for external damage: if a carbon brush has cracks, chips, burn marks, or if its connecting wires are overheated and aged, or the brush body is deformed, it indicates that the brush has lost its normal working capacity. Additionally, uneven wear is another important sign—if some carbon brushes are excessively worn while others show minimal wear, it may cause uneven current distribution and poor contact, leading to more severe failures. In such cases, the entire set of carbon brushes should be replaced.
(2) Abnormal Operating Performance
Abnormal performance during turbine operation is often related to carbon brush failures. From the perspective of current transmission, continuous sparking or arcing at the contact point between the carbon brush and slip ring usually indicates insufficient contact pressure or severe brush wear. At the same time, potential causes such as spring aging and slip ring surface wear need to be investigated. From the mechanical operation perspective, abnormal "clicking" noises or vibrations in the slip ring or carbon brush area may result from unstable brush contact or uneven wear, leading to abnormal friction. From the perspective of power generation efficiency, a decrease in the turbine's output power and generation efficiency is often due to the decline in the conductive performance of carbon brushes, which prevents efficient electrical power transmission.
(3) Fluctuations in Electrical Parameters
Changes in electrical system parameters can accurately reflect the condition of carbon brushes. If the turbine experiences fluctuations in power output or electrical system instability, it may be due to increased contact resistance caused by carbon brush wear, resulting in interrupted current transmission. Moreover, increased resistance at the contact point between the carbon brush and slip ring can also lead to abnormal rises in operating temperature, forming a vicious cycle of "heating-accelerated wear," which requires immediate shutdown for inspection.
(4) Time-Based Reference
Under normal operating conditions, the average service life of carbon brushes in wind turbines is 12–18 months. Beyond this period, even if no obvious failures occur, the brushes should be included in key monitoring. It is recommended to replace them uniformly during routine maintenance to avoid sudden failures. Furthermore, most operation and maintenance teams incorporate carbon brush replacement into their annual or semi-annual maintenance plans. Preventive replacement helps reduce the risk of downtime—after all, compared to the low cost of carbon brushes themselves, the time and labor costs associated with wind turbine shutdowns for maintenance (especially high-altitude operations) are much higher.
3. The Core Significance of Emphasizing Carbon Brush Maintenance and Replacement
In the operation and maintenance costs of wind turbines, downtime losses account for a significant proportion. As low-cost consumable parts, the maintenance quality of carbon brushes directly affects the overall operating efficiency of the turbine. Neglecting carbon brush wear issues not only leads to power fluctuations and reduced generation efficiency but may also cause sparking due to poor contact, which burns the slip ring surface and results in severe damage such as slip ring grooving, pitting, and out-of-roundness. The cost of subsequent repair or replacement of slip rings is far higher than that of carbon brushes themselves. Through regular inspection and timely replacement of carbon brushes, the stable operation of the turbine can be ensured, sudden failures reduced, and the service life of key components such as slip rings extended. In the long run, this can significantly lower overall operation and maintenance costs and safety risks.
4. Key Selection Tips for High-Quality Replacement Carbon Brushes
Although carbon brushes are consumables, improper selection can lead to a series of chain failures. Therefore, the following core factors should be focused on:
Material Compatibility: Carbon brushes are based on graphite as the base material, and are classified into types such as silver-graphite and copper-graphite according to the proportion of added metals (silver, copper). The selection should be based on the design requirements of the wind turbine generator (e.g., current load, rotational speed)—silver-based carbon brushes are suitable for high-speed, low-wear scenarios, while copper-based carbon brushes have advantages in high-current transmission. Some high-end products are added with special impregnant or additives to improve wear resistance and thermal conductivity, which can be selected according to the needs of harsh working conditions.
Performance Indicators: High-quality carbon brushes should have a low friction coefficient (to reduce slip ring wear), excellent electrical and thermal conductivity (to avoid local overheating), and at the same time, form a good "running-in layer" with the slip ring material to ensure contact stability.
Supporting Components: The spring pressure of carbon brushes is a key factor affecting contact performance. When replacing carbon brushes, the spring condition should be checked simultaneously. It is recommended to select replacement parts that meet the original factory's standard spring pressure, and the springs should be marked with a production date to facilitate regular replacement in accordance with industry standards.
Avoid Misunderstandings: The use of carbon brushes with incorrect models or poor quality is strictly prohibited, as this may lead to issues such as unstable brush operation, accelerated slip ring wear, and frequent sparking. At the same time, avoid continuing to use carbon brushes that have worn beyond their limit size, to prevent irreversible component damage.

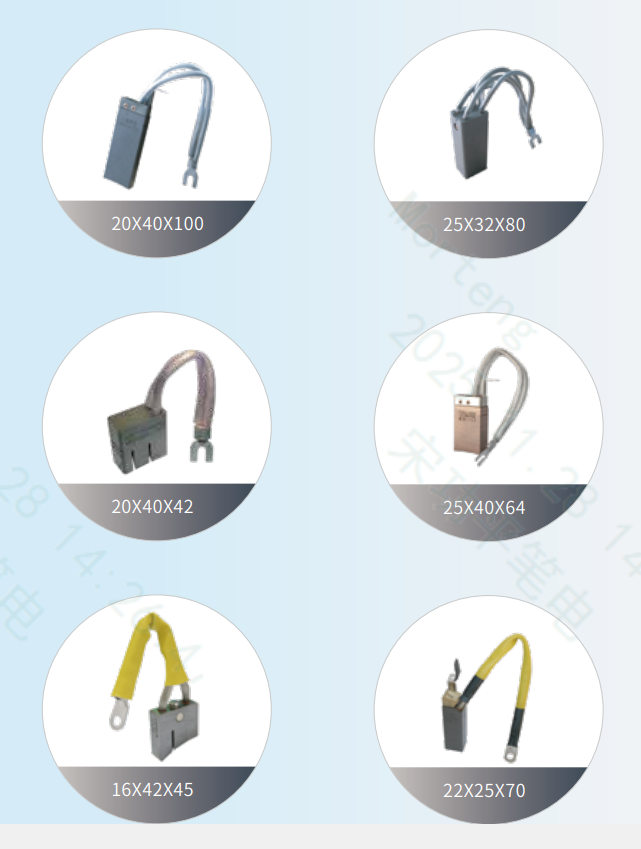

With years of experience in designing and manufacturing rotating components for the wind power industry, combined with advanced testing equipment and operation & maintenance repair practices, we provide a full range of replacement carbon brushes for wind turbines, covering various material grades such as silver-graphite and copper-graphite, which are compatible with mainstream wind turbine models. Our products not only include standard sizes and customized specifications but also provide one-stop services such as slip ring repair and brush holder adjustment, ensuring perfect compatibility between carbon brushes and the turbine, and helping operation and maintenance teams reduce downtime risks and ensure the long-term and efficient operation of wind turbines.
